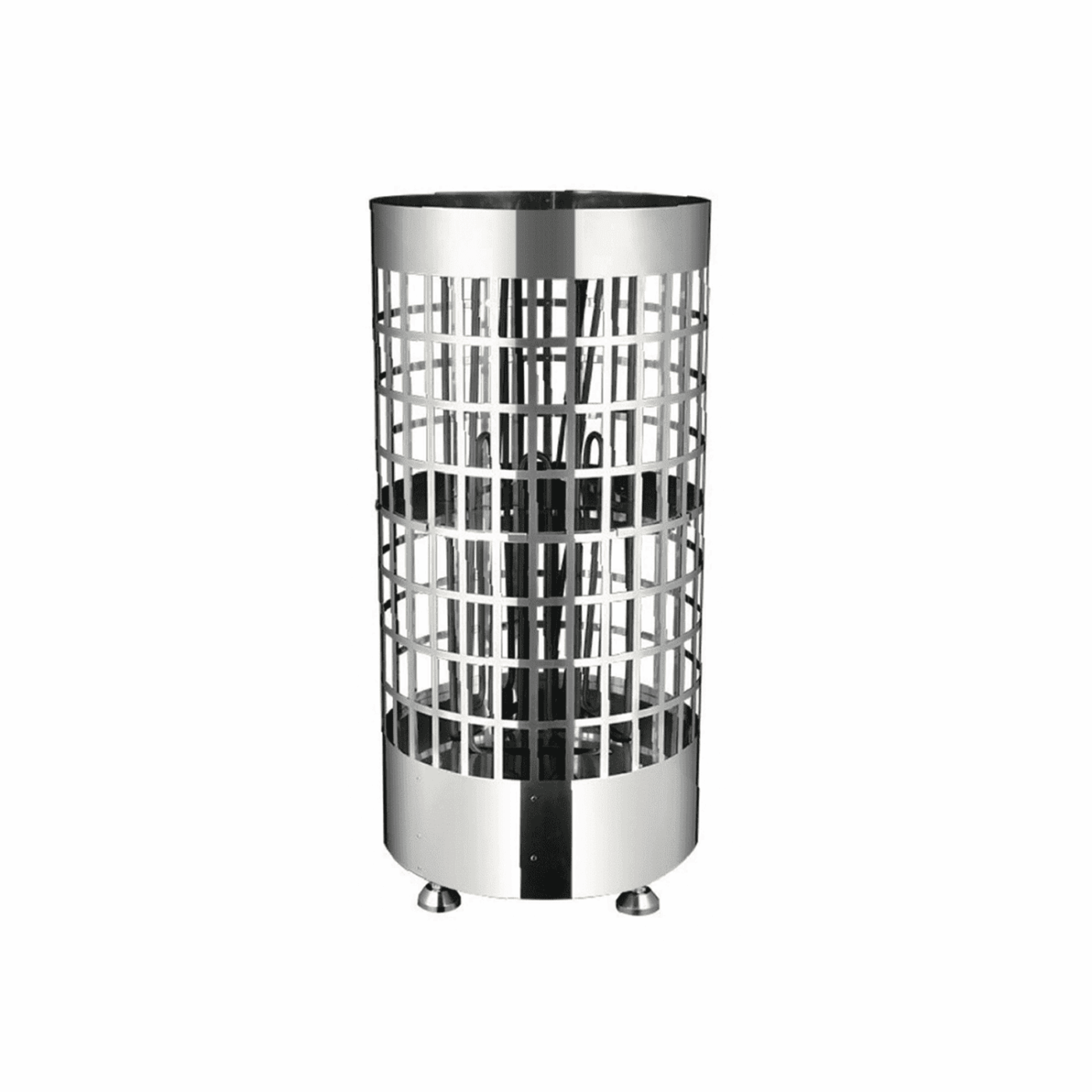

The Cylinder Heater is a floor-standing tower, 800mm tall and 380mm across, holding 50 to 80kg of sauna stones. Most wall heaters hold 18 to 22kg.
price updates live
Have more questions? Chat with us
That stone mass is the point of it. More stone means more stored heat,
so the room holds temperature more steadily through a session, and the
löyly is heavier when you ladle water over the top. The trade is at the
start: 30 to 45 minutes to come up to temperature, rather than warming
fast and then swinging.
The cylindrical body lets air move freely around the elements and the
stones, and the open steel cage makes the whole stack visible — it
reads as a centrepiece rather than a box on the wall.
Control is a wall-mounted panel with a digital LCD display, fitted
outside the sauna door, with Wi-Fi built in. The free iOS and Android
app turns the sauna on, sets the temperature and the timer, and shows
you what the room is doing from anywhere. The panel works on its own;
Wi-Fi adds the phone, and the panel keeps full control if the network
drops.
Stainless steel, silver finish. Eight outputs from 3 to 18kW. All
RonYen sauna heaters are TÜV Safety Certified.
Electric sauna heater unit (cylinder design)
Wall-mounted control panel with digital LCD display and Wi-Fi
Controller cable for routing through the wall
Mounting brackets and hardware
Installation manual (English)
Use the editor’s bulleted-list button for those five lines.
Note: Sauna stones are sold separately. This heater takes 50–80kg,
which is four boxes.
Heater Dimensions
Diameter: 380mm
Height: 800mm
Weight: 13kg (heater only, without stones)
Stone capacity: 50–80kg
Electrical
Outputs: 3 / 4.5 / 6 / 7.5 / 9 / 12 / 15 / 18kW
3 to 7.5kW: 230V single phase, or 400V three phase
9kW and above: 400V three phase only
Dedicated circuit with a correctly rated MCB
Hardwired installation, no plug
Approximate current draw
Calculated at the Thai design minimum — 220V single phase, 380V three
phase — so the real figure on a 230V or 400V supply is slightly lower.
Cable size, cable type and breaker rating must be set by your
electrician for the actual installation.
3kW — 14A single phase
4.5kW — 21A single phase
6kW — 28A single phase
7.5kW — 35A single phase
9kW — 14A three phase
12kW — 19A three phase
15kW — 23A three phase
18kW — 28A three phase
Control panel
Type: wall-mounted, fitted outside the sauna room
Display: digital LCD
Settable range: 40–110°C
Timer: up to 8 hours
Wi-Fi: 2.4GHz, built in
App: free, iOS and Android
Heater operating range: 60–105°C (most people run 80–90°C)
Heat-up time: 30–45 minutes to 80°C, depending on the room
Stone heating: direct contact, for steam on demand
Work out the interior volume of the sauna room — length × width ×
height. Then add 10 to 15 per cent for the Thai climate, and another
10 per cent if the sauna is outdoors or has a lot of glass.
3kW — 2 to 4 m³. For example 1.2m × 1.2m × 2.1m
4.5kW — 3 to 6 m³. For example 1.5m × 1.5m × 2.1m
6kW — 5 to 8 m³. For example 1.8m × 1.8m × 2.1m
7.5kW — 7 to 9 m³. For example 2.0m × 2.0m × 2.1m
9kW — 8 to 11 m³. For example 2.2m × 2.2m × 2.1m
12kW — 11 to 15 m³. For example 2.5m × 2.5m × 2.1m
15kW — 13 to 18 m³. For example 2.8m × 2.8m × 2.1m
18kW — 15 to 20 m³. For example 3.0m × 3.0m × 2.1m
Bold the output at the start of each line if you want them to stand
out, or leave them plain.
Undersize the heater and the room never quite gets there. Oversize it,
and it cycles on and off and wastes power. We confirm the output
against your room before you order.
### Installation
- Professional electrical installation required
- Heater must be hardwired to a dedicated circuit by a licensed electrician
- Floor-mounted design — requires adequate ceiling clearance (minimum 400mm above heater)
- External controller requires small hole through sauna wall for cable connection
- RonYen Sauna provides installation guidance but does not install standalone heaters
- We recommend hiring a local electrician familiar with high-amperage appliance installation
- Wi-Fi setup is simple — adapter plugs into controller and pairs with app in minutes
Installation typically requires:
- Dedicated electrical circuit (30–40A depending on heater size)
- Appropriate MCB/circuit breaker
- Heat-resistant wiring rated for sauna conditions
- Small wall penetration for controller cable
- Wi-Fi network with 2.4GHz support
- Adequate ceiling clearance (minimum 400mm above heater)
### Delivery
- Free delivery throughout Thailand
- Standard delivery timeframe is 2–4 weeks from order confirmation
- Heater, controller, and Wi-Fi adapter ship together
- Stones sold separately and ship in 4 boxes due to weight
If an electrical item stops working within the warranty period, we’ll send you a replacement free of charge.
Electronics: 1 year replacement warranty on electrical components
Warranty does not cover misuse, modifications, or normal wear and tear.
Regular Maintenance
- Inspect stones every 6–12 months and rotate or replace cracked stones
- Wipe down exterior with a damp cloth when cool
- Check controller display and connections periodically
Stones
- Use only sauna-grade stones rated for high heat
- Replace any stones that have cracked or deteriorated
- Arrange stones loosely to allow air circulation
Wi-Fi System
- Keep adapter firmware updated via the app when prompted
- Ensure stable 2.4GHz Wi-Fi signal reaches controller location
Professional Service
- Have a qualified electrician inspect connections annually
- Contact RonYen Sauna if you notice any unusual operation
For detailed care instructions, visit ronyen.com/support
